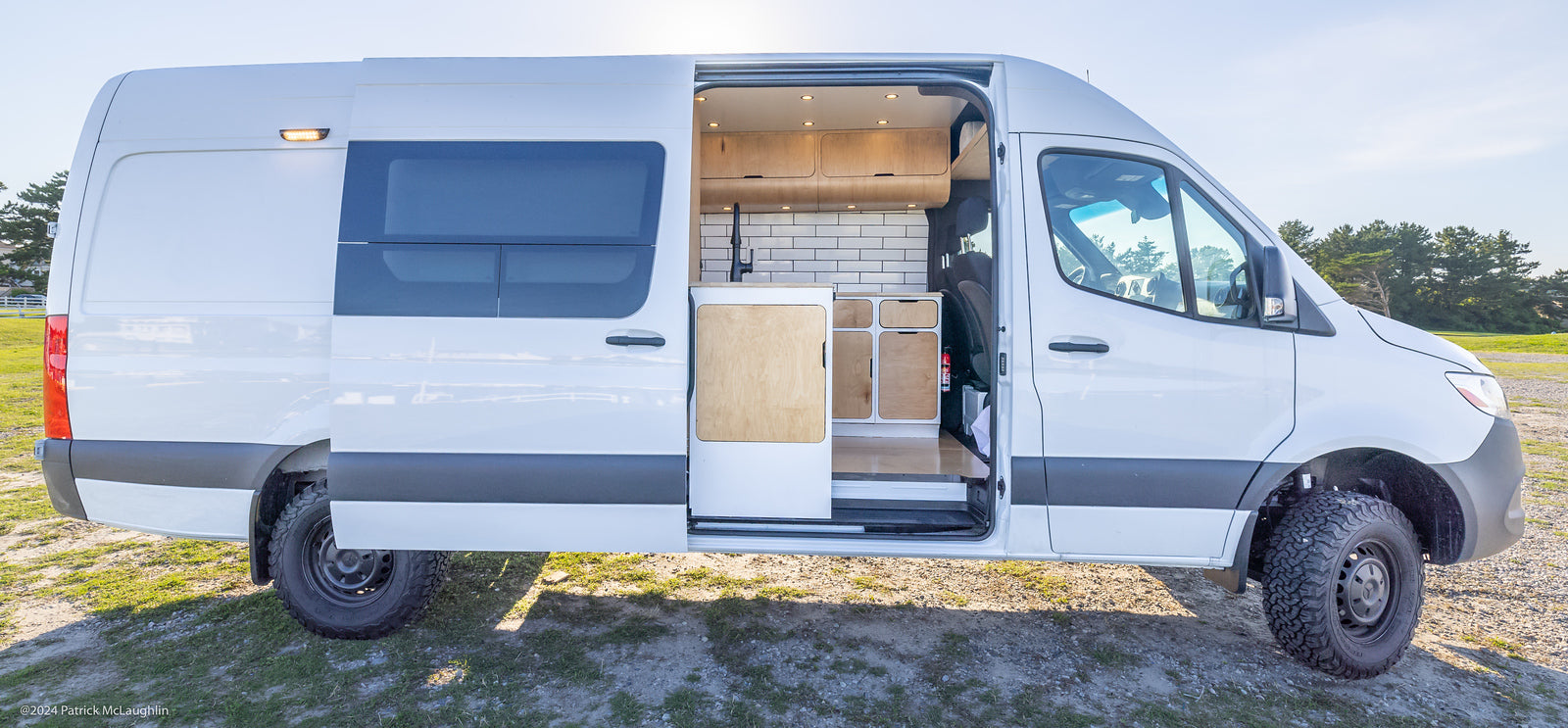

2023 Mercedes Sprinter-170 WV3

2023 Mercedes Sprinter-170 All Wheel Drive

Interior Build Out

• Insulated floors, walls, and ceiling
• CNC cut maple floors, walls, ceiling, benches

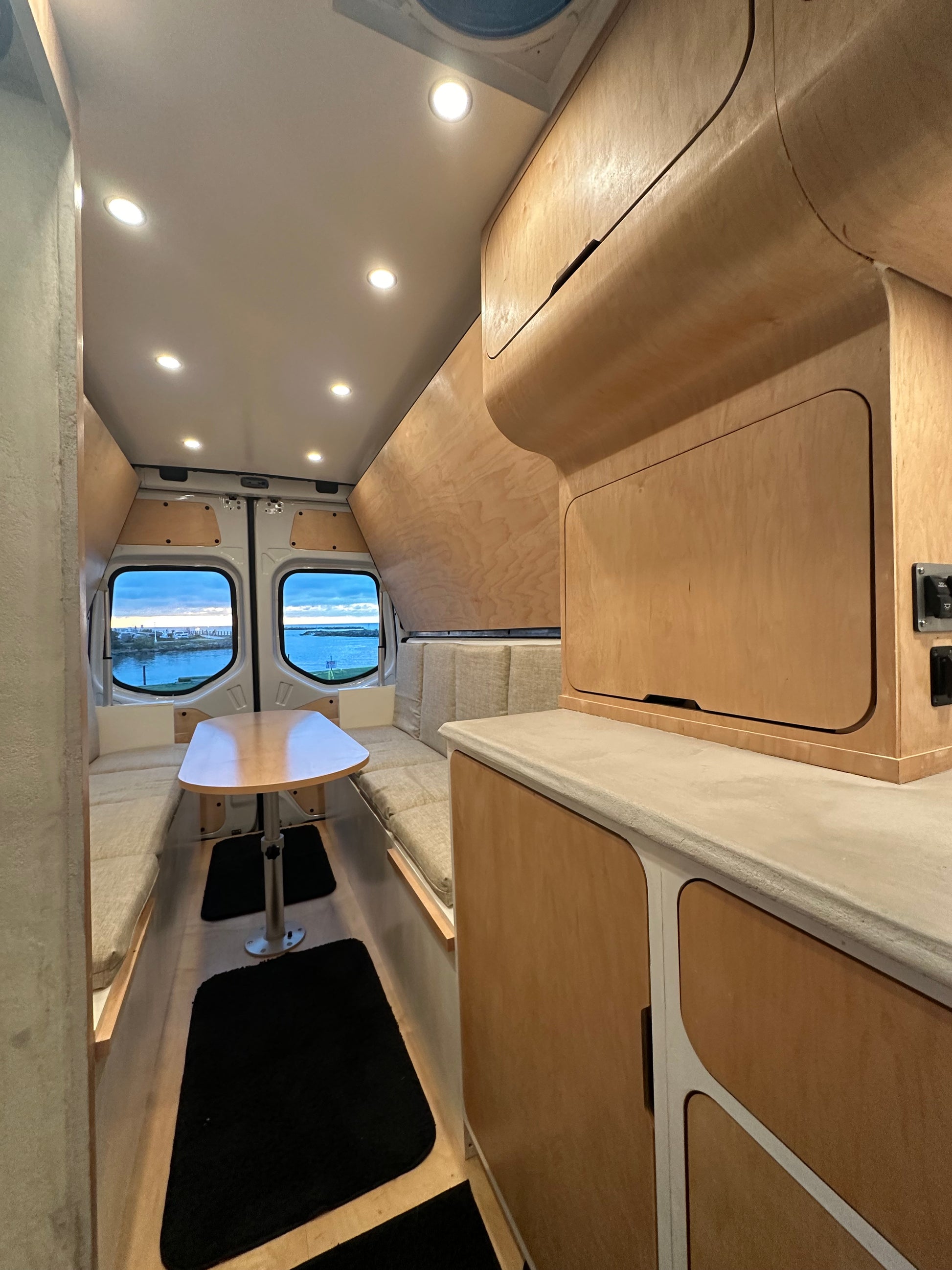

• CNC cut curved upper cabinets
• CNC cut base cabinets
• Soft close hinges and drawer slides throughout

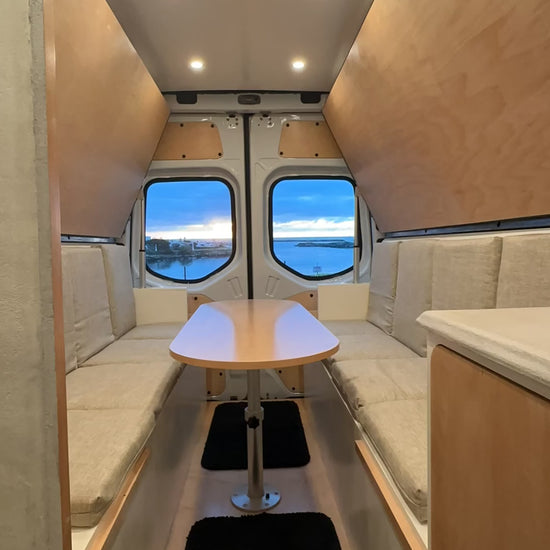

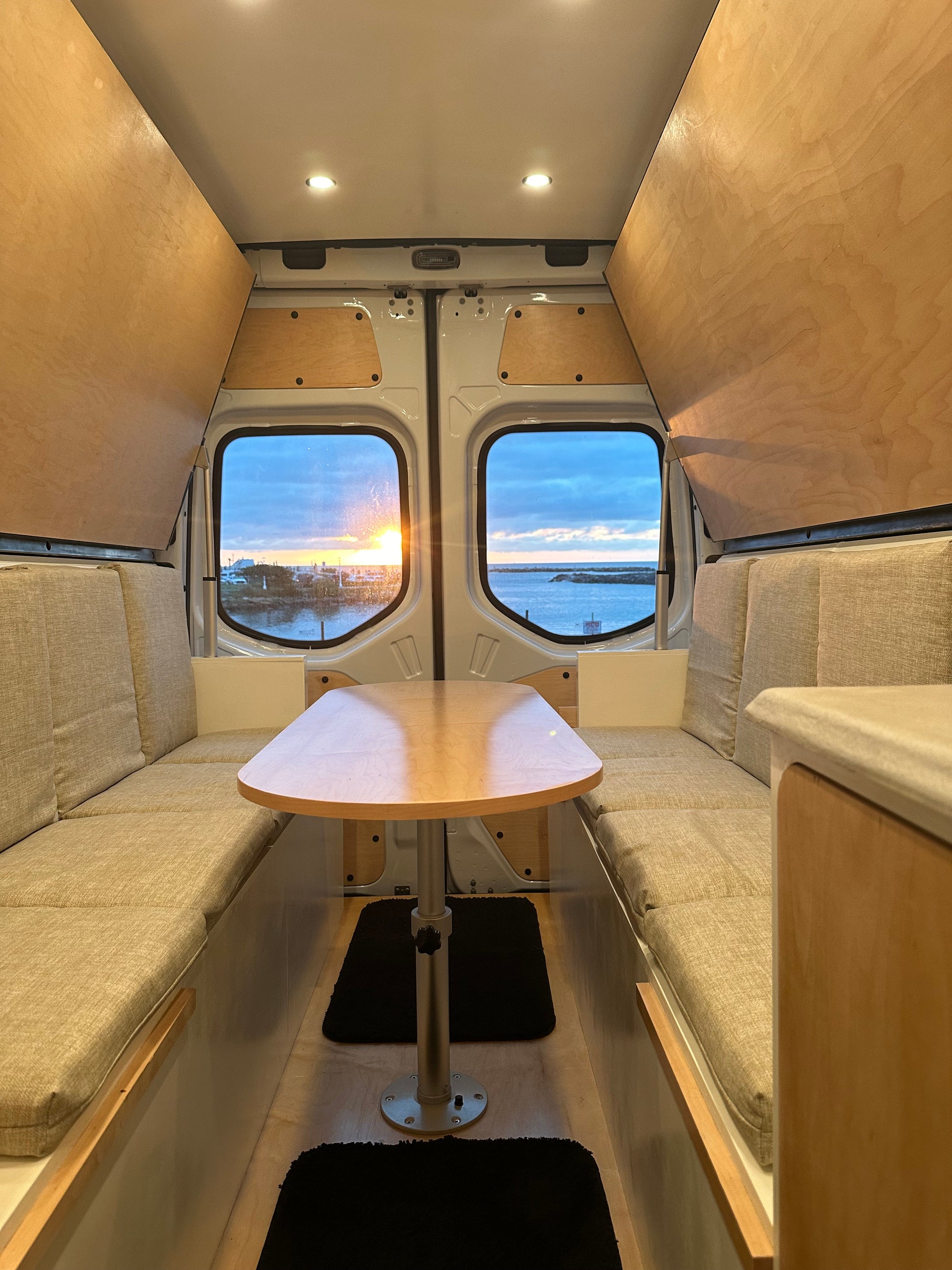

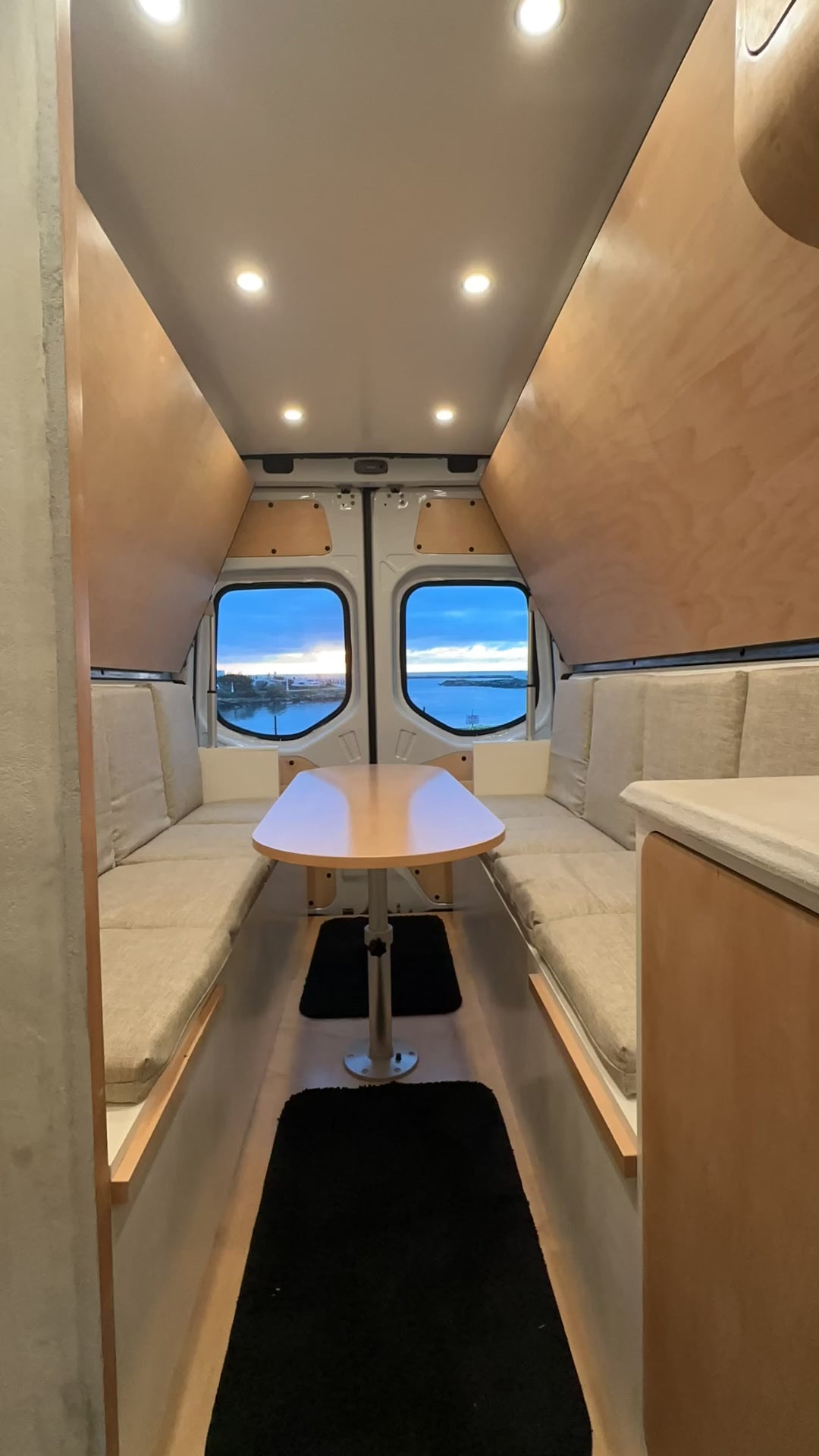

• 6 person  72” dining area

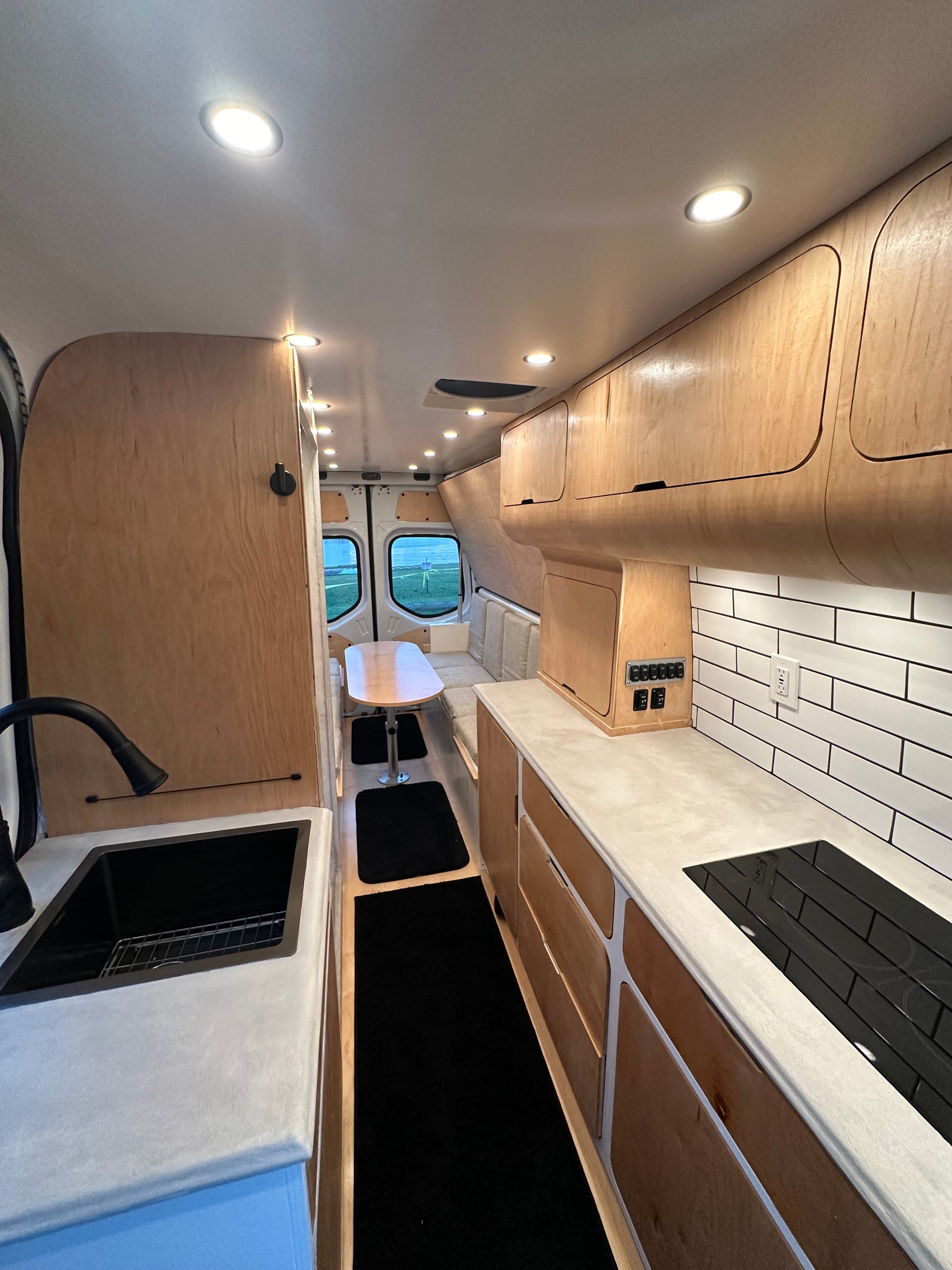

• Micro concrete counter tops and shower surround
• Dining area and benches that convert to 60”x72” sleeping area

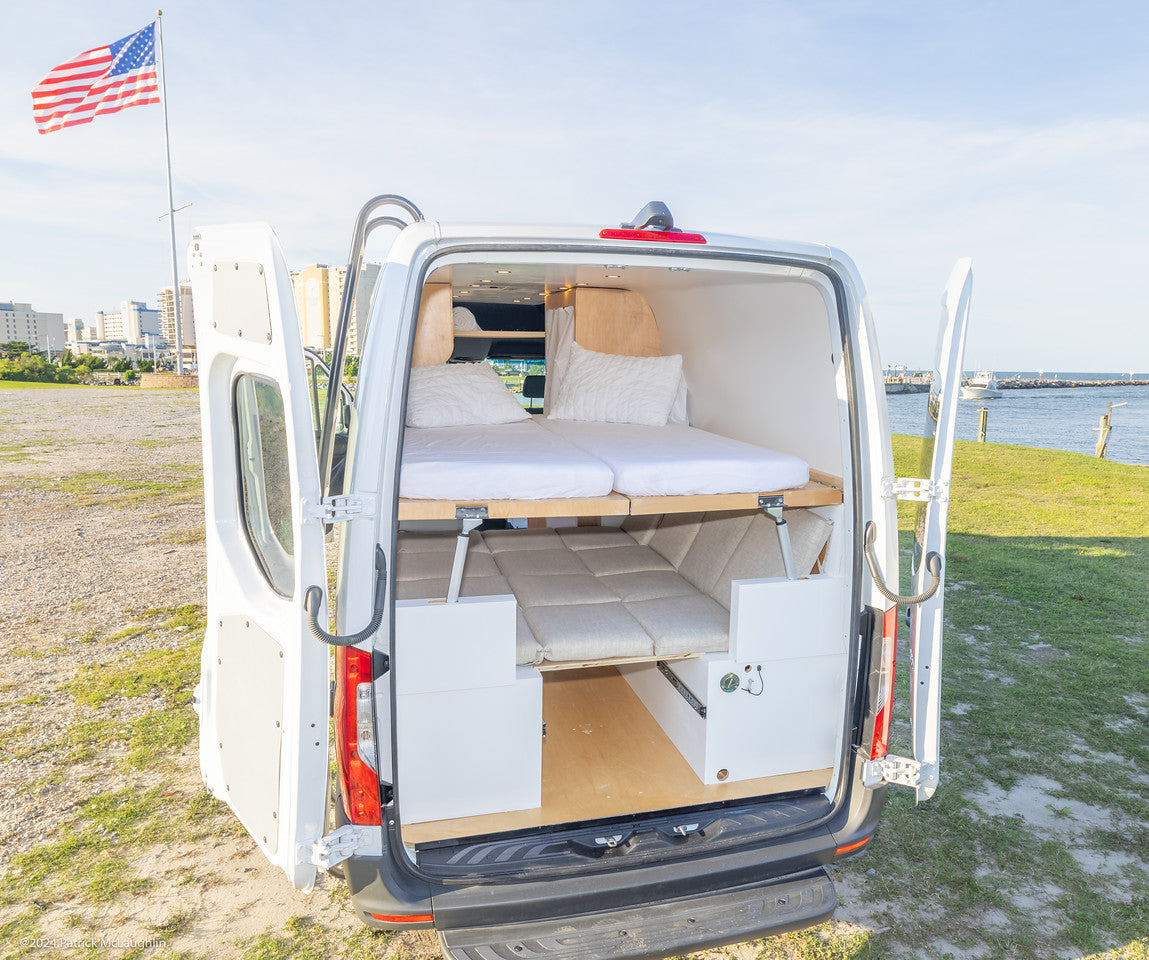

• Dual electric murphy beds that lower to 66”x72” sleeping area. 600lb load capacity per side.
• 30”x20” interior shower
• Overhead storage shelf in driver cabin
• Passenger swivel seat

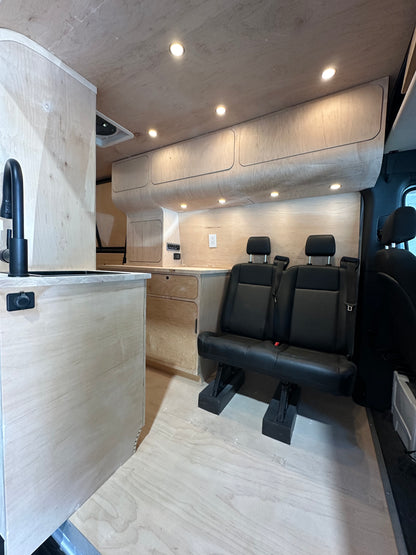

• Passenger seating behind driver cabin

Electrical

• shore power hook up
• Dual Alternator hook up
• 5 100 amp AGM batteries under driver side rear bench
• 2 6000 watt renogy inverters with blue tooth capability under driver side rear bench

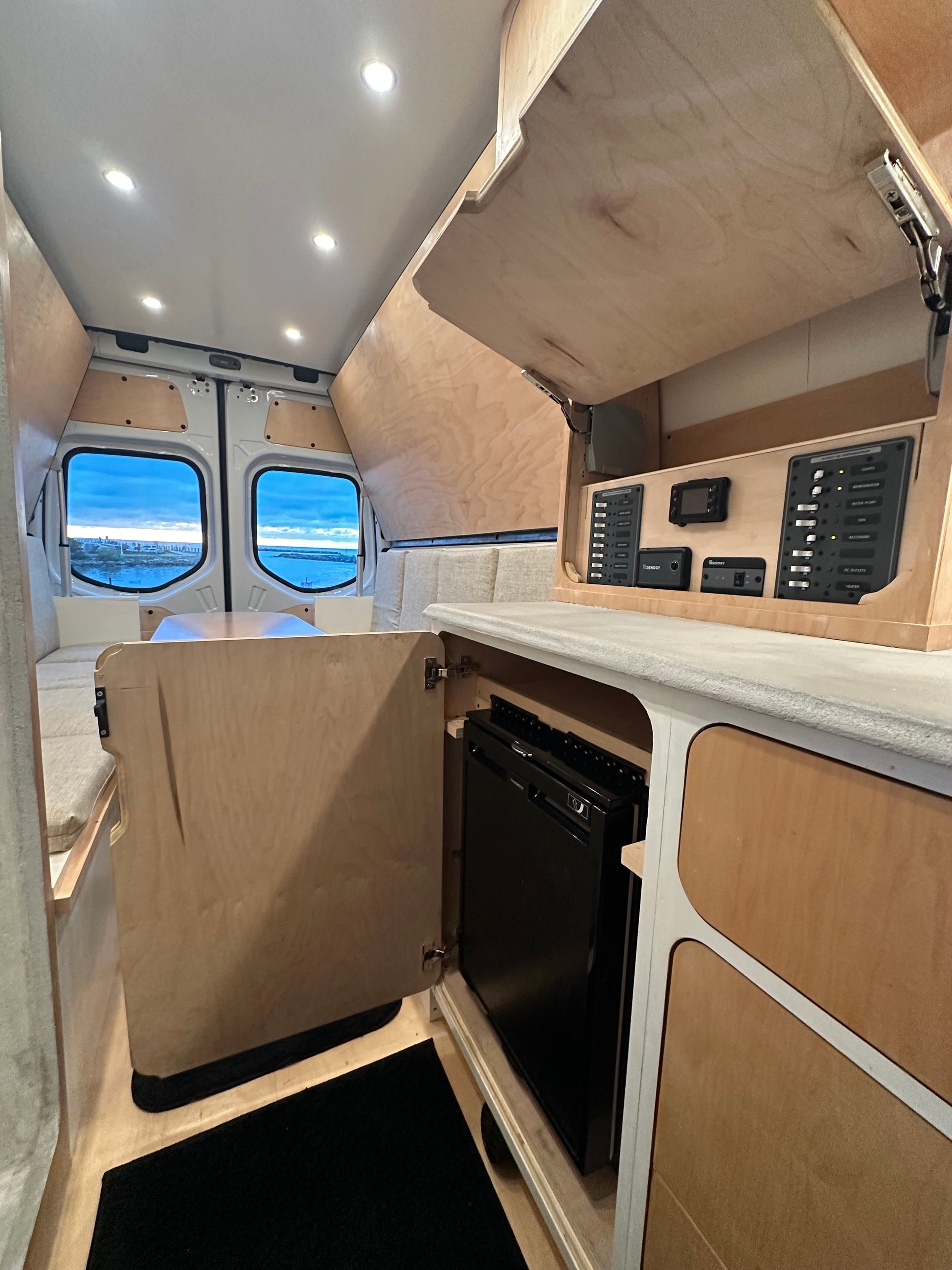

• Electrical cabinet with 12v & 120 Distribution Panels centrally located
• Switch panel that controls rear ceiling lights, front ceiling lights, shower light, under cabinet lighting, driver side murphy bed, passenger side murphy bed, exterior lights
• 19 3” led lights
• under cabinet lighting

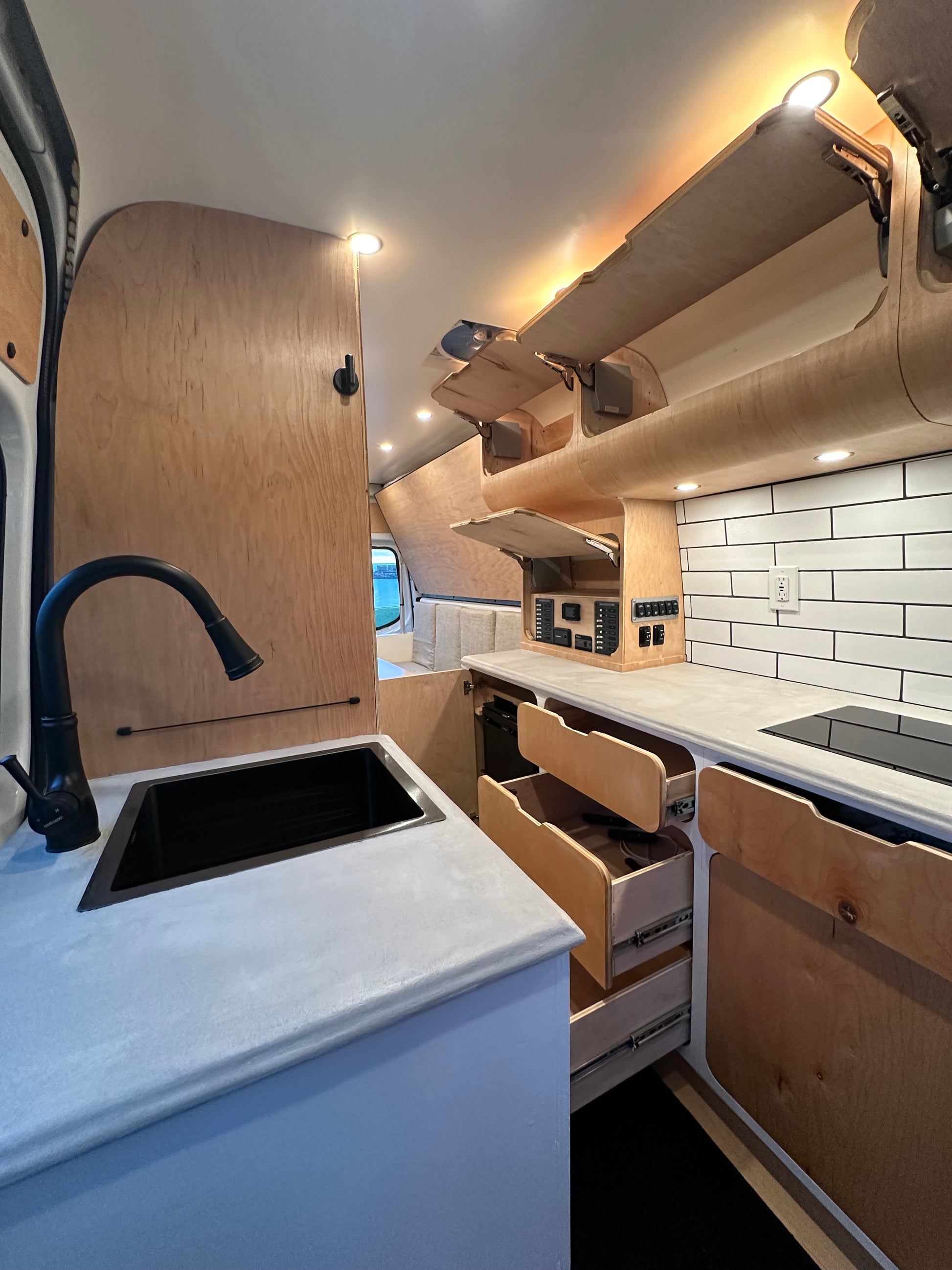

• Induction Cook Top mounted flush to butcher block
• 12v Dometic refrigerator in base cabinet

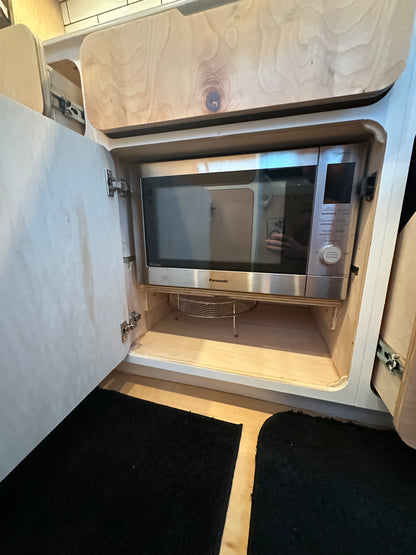

• Panasonic Induction Microwave mounted in base cabinet
• 12v diesel heater hooked up to Mercedes Diesel Tank
• 120 Amp galley outlet with usb and usb charging ports
• 2 12v charging ports on sink base and driver side rear bench
• 12v Maxx Roof vent

Plumbing

• 25 gallon fresh water tank mounted under passenger side bench seat
• 12v water pump
• Bosche 4 gallon per minute hot water heater mounted under passenger bench seat

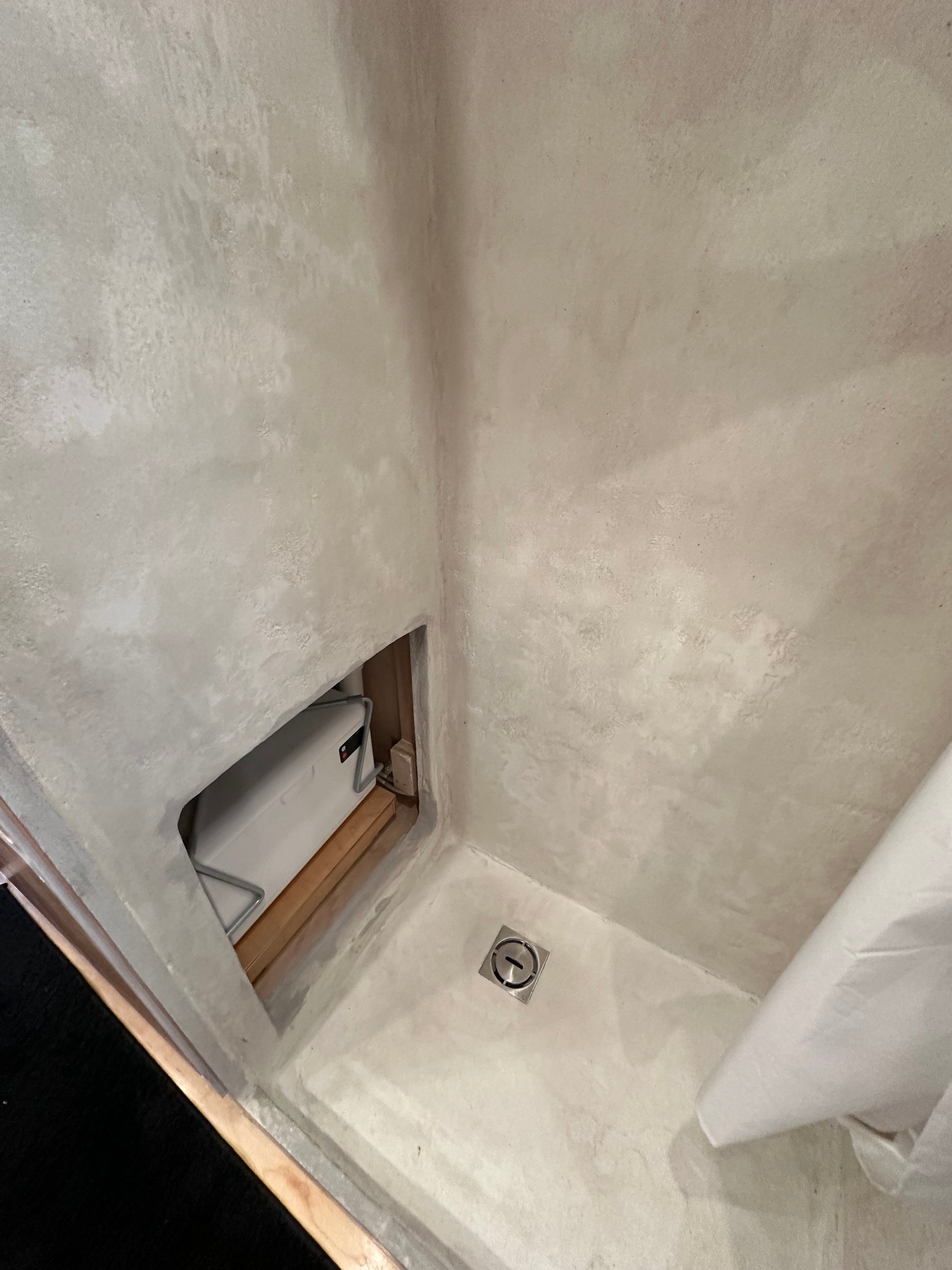

• 30”x20”x72” shower with height adjustable shower head

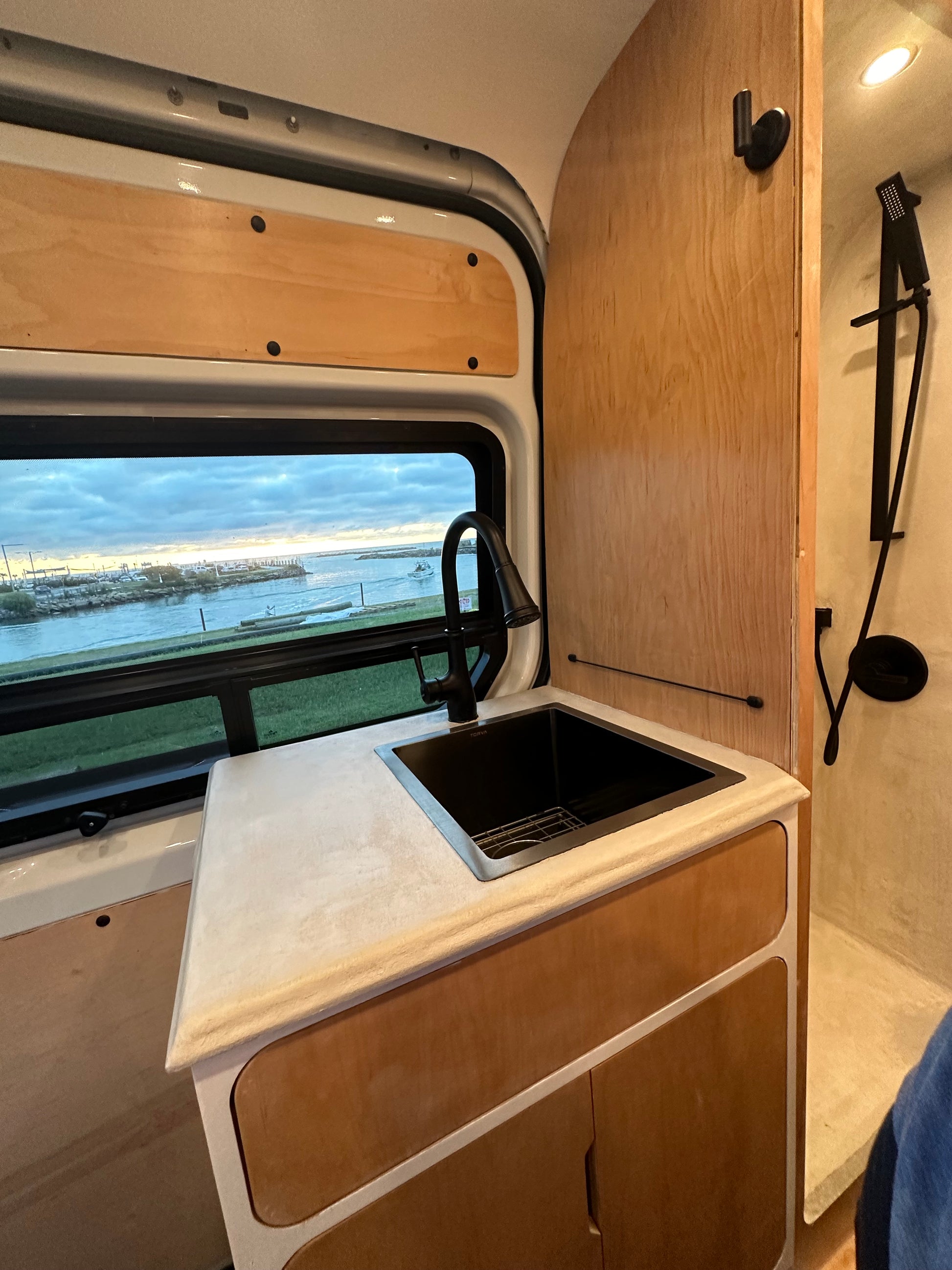

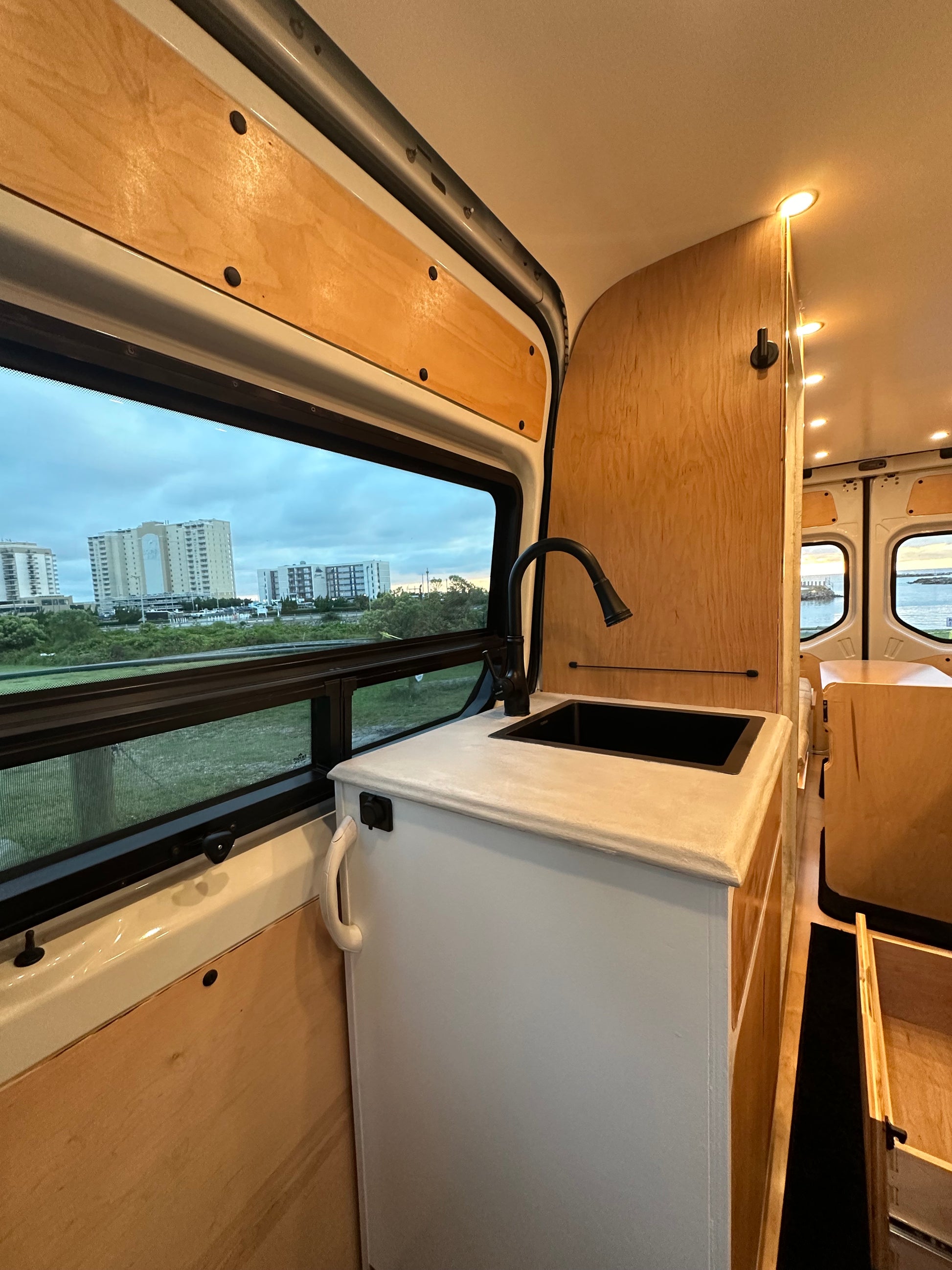

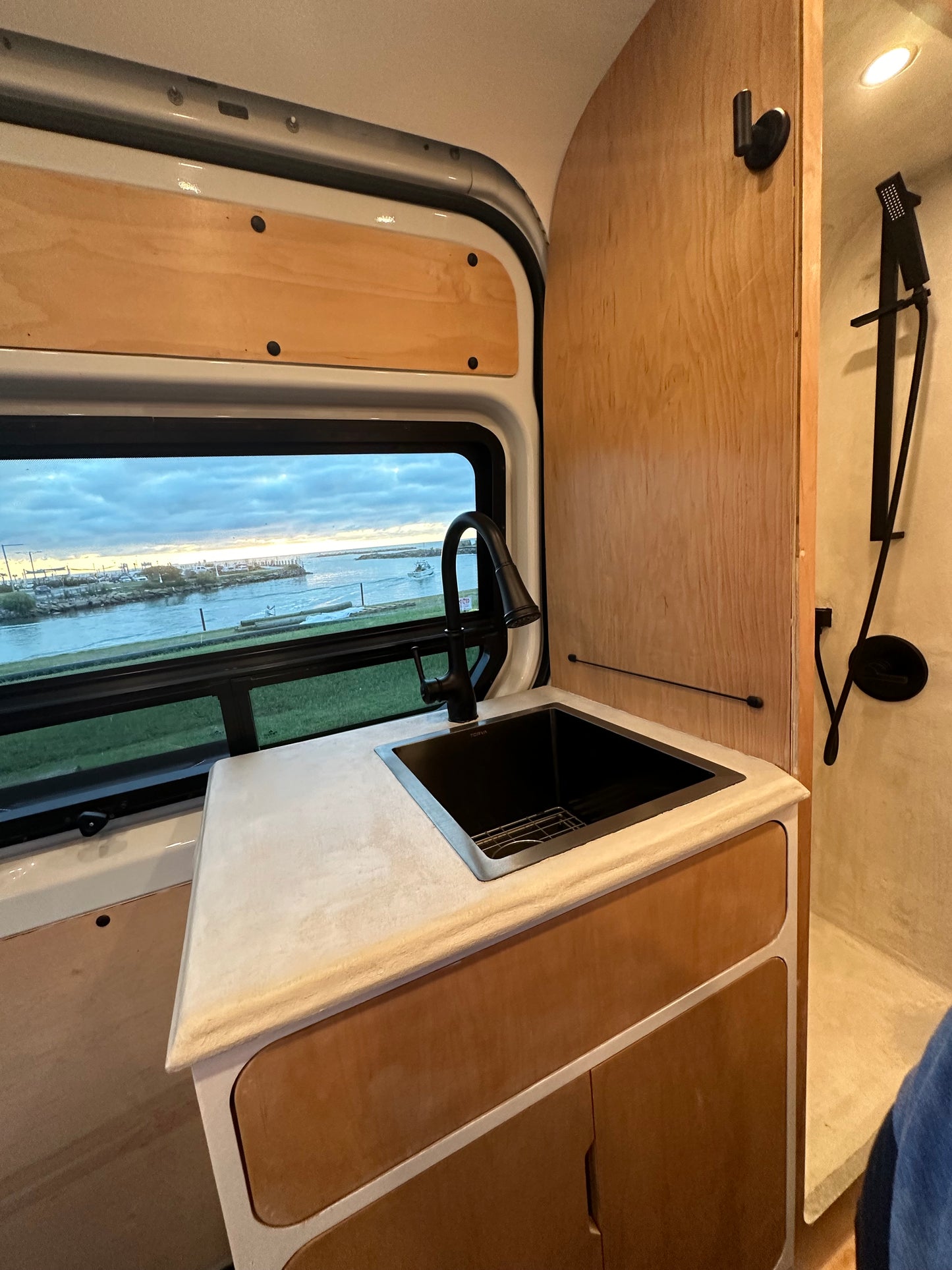

• 13”x15” kitchen sink
• Sink faucet rotates to double as an outdoor shower
• Under mount 22 gallon grey tank with hose connection to easily drain
• Grey tank heating pad with self regulating thermostat
• Plumbing ran to accommodate colder climates


Exterior

• 18” wide single piece exterior ladder
• Passenger sliding door windows
• Rear door windows
• All terrain tires

Optional

• 12v line ran for awning
• 12 V A/C in ceiling
• Exterior lights
